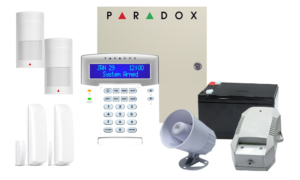

The Digiplex EVO is an access control and security system with 8 built-in zone inputs (16 with zone doubling) expandable to 192 zones via 4-wire combus. The EVO control panel supports up to 999 users, 8 partitions, 32 doors and can support up to 254 modules in any combination.
The EVO system can be expanded by adding plug-and-play expansion modules anywhere and in any combination on the 4-wire combus. Modules are connected to the combus in the most easily accessible location and zone inputs are assigned to the desired zone and partition. In addition, only used inputs on a module are assigned to zones in the system. Keyswitches, remote controls and unused module inputs do not occupy zones. Once installed, all modules on the combus, including motion sensors, can be programmed remotely using a keypad or Babyware Upload/Download software.
The EVO also supports 32 virtual zones in addition to its security zones and access control doors. Virtual zones can be used to automate the activation of PGM outputs without occupying a security zone and without affecting the system's security functions.
